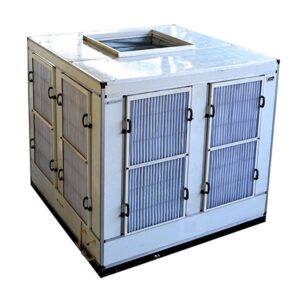

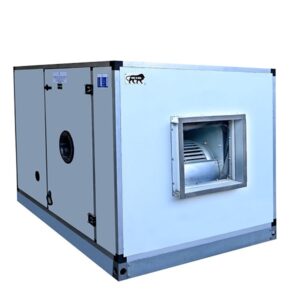

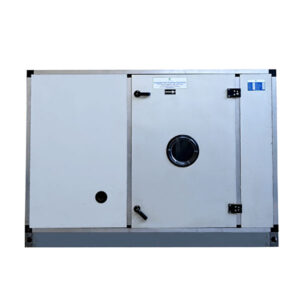

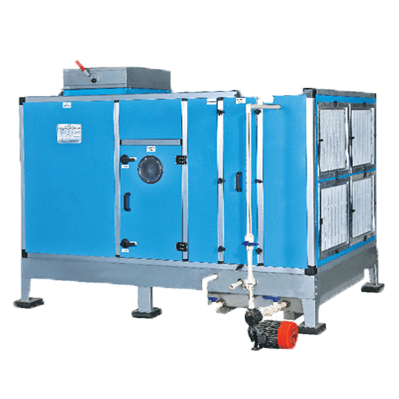

An Air Washer Unit is a piece of equipment that is designed to improve air quality by scrubbing the air that moves through it and adjusting humidity levels to keep the environment consistent. Air washers are used as part of climate control and air quality systems. Aayushi Engineering offers superior quality Air Washer System, Industrial Air Washer Unit Washer and that works on the principle of cooling outside air by passing it over water-saturated pads, causing the water to evaporate into it.
- Range:-2,000 CMF TO 1,00,000 CMF
- Blower Types: Backward / Forward blowers
- Bearings:- Self Aligning, Pillow Block Type
- Filters:- Synthetic, Washable
- Panels: GI/SS/FRP Long Life Body
- Single Skin:- 18 SWG, Powder Coated
- Double Skin :- 24 SWG, Skins with Sandwitched Insulation
Line Diagram

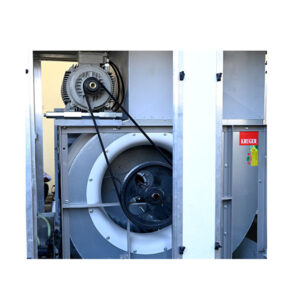

Fan Features
- The fans are of international standard and are AMCA certified.
- Centrifugal blower forward / backward curved as per static pressure requirements.
- The fans are static and dynamically balanced.
Electric Motors
TEFC Squirrel Cage Induction Motor , IP 55 Protected VFD Compatible induction motor of Standard make siemens/CG/Havells /ABB etc.
Cooling Pads
High quality Evaporative Cooling Pads CELdek-Munters/ Hu-Tek / Eco-Cool make are used for high saturation and
cooling efficiency upto 90%. The Cooling Pad is made of cellulose ( Pulp ) sheet and bonded together in 7mm flute size of 45 deg X 45 deg angle. The Cellulose Pad is cross-corrugated and coated with anti-rot, rigidifying and wetting agent.
